Designed by zerofox3D Ltd
Nibbler2 3D Printable Portable case for Heltec V3 V4 and Heltec T114 (3D PRINT FILES ONLY)
Nibbler2 3D Printable Portable case for Heltec V3 V4 and Heltec T114 (3D PRINT FILES ONLY)
Couldn't load pickup availability

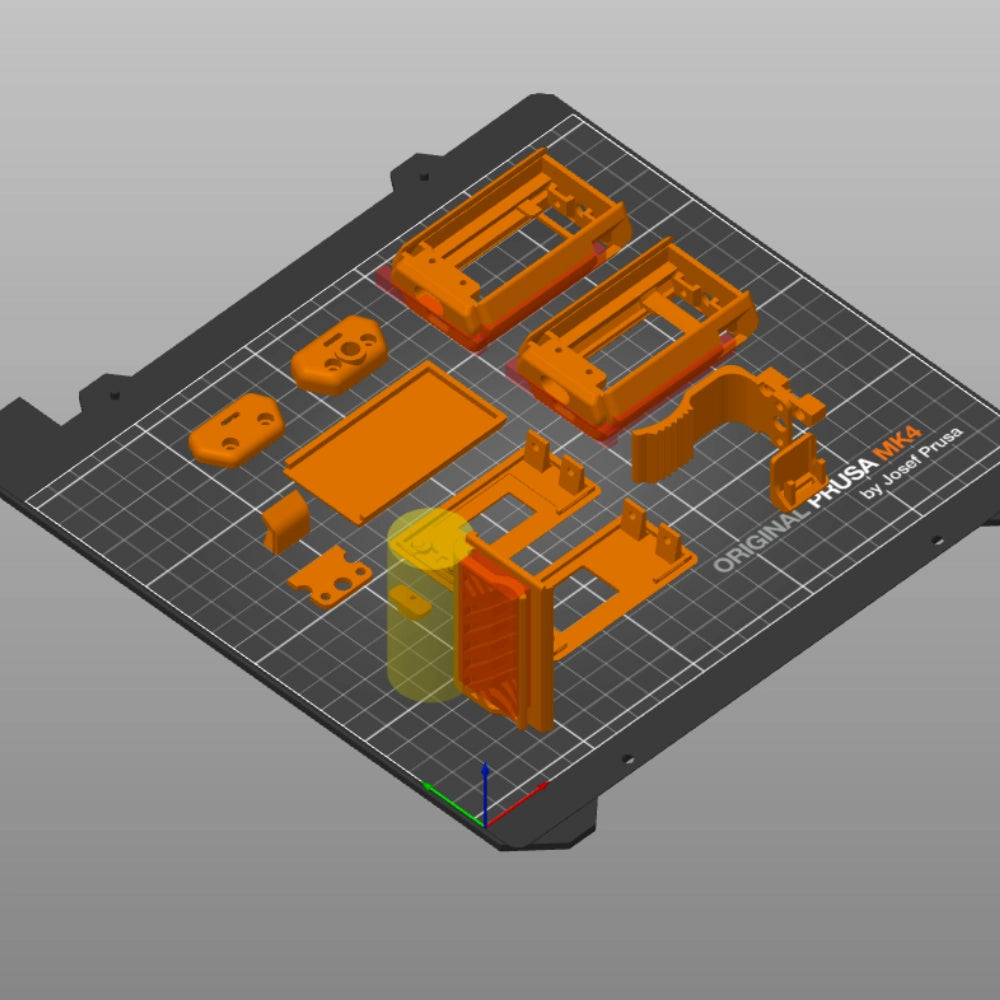

THIS PRODUCT IS A DIGITAL DOWNLOAD THAT INCLUDES THE STL FILES NEEDED TO PRINT YOUR OWN BENDER2
***ADD A HARDWARE KIT TO THE SHOPPING CART WITH YOUR PRINT FILES FOR A 15% DISCOUNT!!***
Say hello to the Nibbler2! The smallest “pocketable” portable MeshCore or Meshtastic powered node case for Heltec boards that now includes a hardware POWER SWTICH!
Yes, I worked a miracle, the new power switch design from Bender2 squeezes into Nibbler2 with just a couple of millimetres added to the original size (a little hump!)
THIS PRODUCT IS A DIGITAL DOWNLOAD THAT INCLUDES THE STL FILES NEEDED TO PRINT YOUR OWN BENDER2
Nibbler2 now also supports the Heltec V4 as well as the Heltec V3 and T114.
The original Nibbler was designed to be a companion to Bender (this is a Mesh network after all!) with the design goals being maximum portability, practicality and antenna flexibility. The addition of the new power switch now allows you to maximise battery life too!
You can print a Nibbler2 with either an SMA connector for using the antenna of your choice or an internal high quality PCB antenna that minimises size.
You can also choose two different "clip" options, a "walkie" style vertical clip or a "pager" style horizontal clip. Both are super strong with only one break reported in 500 sales. You can of course choose no-clip for maximum pocket-ability!
For extra security Nibbler also has a strong lanyard slot which will accept a loop.
Nibbler uses a 2000mah flat LIPO cell.
Nibbler has a construction designed to be tough, portable things get dropped after all. The key to this is the “Niblet” on the end of the body which attaches with two included M3 Hex bolts. These bolts screw into captive stainless steel square nuts inside the body and secure the front face and rear battery cover and option clip. Nibbler will not come apart unless these two hex bolts are removed, accidental disassembly is pretty impossible!
To summarise the features:
- Supports the Heltec V3, Heltec V4 or Heltec T114
- Supports Heltec GPS module
- Body measuring just 77x49x26mm
- Support for a EEMB LP103454 2000mah flat LIPO with PCM chip
- Power switch!
- Strong Lanyard loop slot
- Two optional Belt Clips
- Access to USB-C connector for charging
Adapting Nibbler to support a power switch was a miracle and I'm sure you'll love it!
BATTERY LINKS:
UK : https://www.amazon.co.uk/dp/B08214DJLJ
US : https://www.amazon.com/dp/B08214DJLJ
When will I receive my order?
When will I receive my order?
This is a digital download product You will receive a link via email shortly after purchase to download your files.
Do you provide instructions?
Do you provide instructions?
All digital downloads contain a release notes file with detailed instructions on how to print, assemble and a bill of materials for any hardware required.
