Nibbler2 - Portable MeshCore Meshtastic Node case with SMA Connector or Internal Antenna

Say hello to the Nibbler2! The smallest “pocketable” portable MeshCore or Meshtastic powered node case for Heltec boards that now includes a hardware POWER SWTICH!

Yes, I worked a miracle, the new power switch design from Bender2 squeezes into Nibbler2 with just a couple of millimetres added to the original size (a little hump!)

PLEASE NOTE: Nibbler does not include the Heltec board, Battery or Antenna

Nibbler2 now also supports the Heltec V4 as well as the Heltec V3 and T114.

The original Nibbler was designed to be a companion to Bender (this is a Mesh network after all!) with the design goals being maximum portability, practicality and antenna flexibility. The addition of the new power switch now allows you to maximise battery life too!

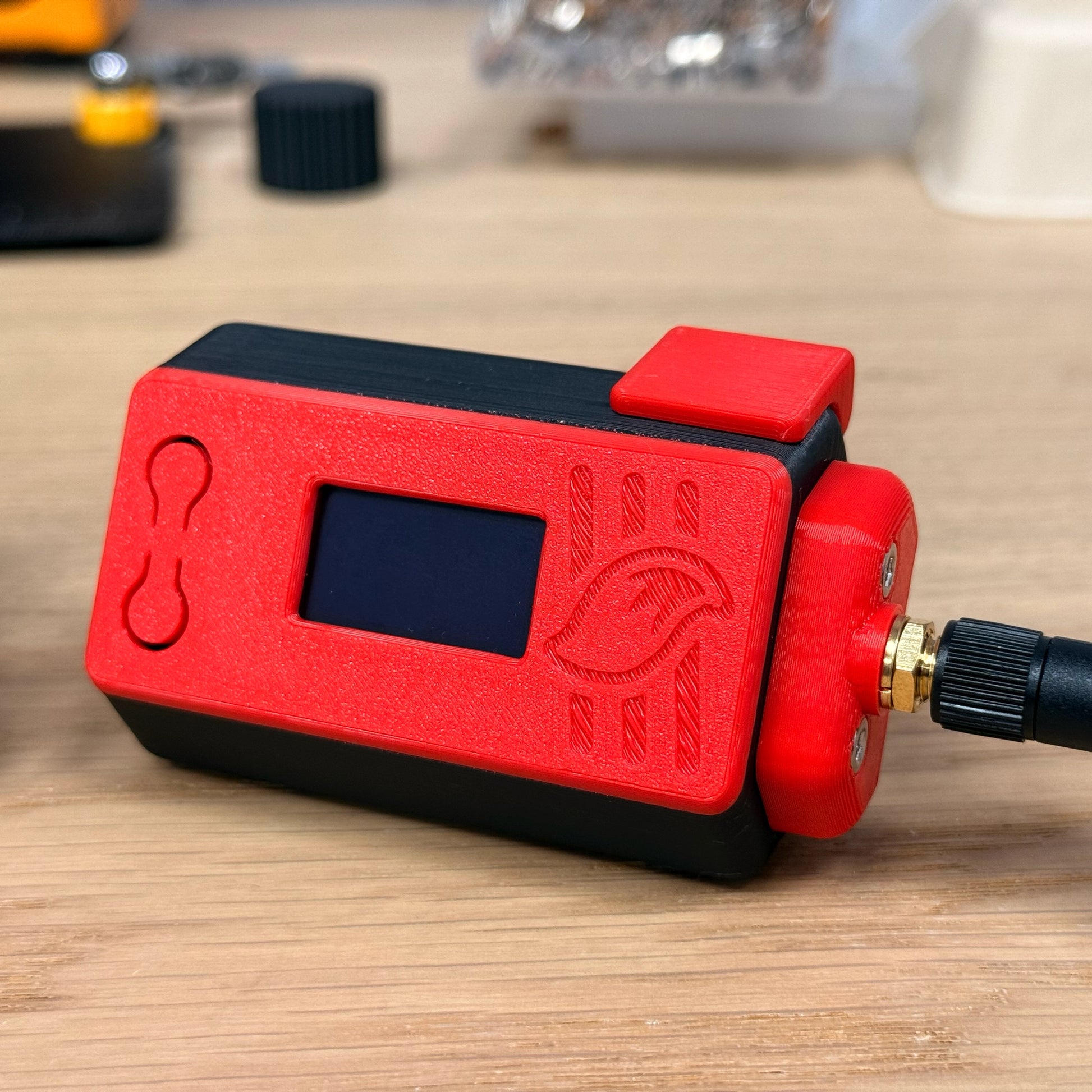

You can choose a Nibbler2 with either an SMA connector for using the antenna of your choice or an internal high quality PCB antenna that minimises size.

You can also choose two different "clip" options, a "walkie" style vertical clip or a "pager" style horizontal clip. Both are super strong with only one break reported in 500 sales. You can of course choose no-clip for maximum pocket-ability!

For extra security Nibbler also has a strong lanyard slot which will accept a loop, a simple black lanyard with quick connector is available as an option.

Nibbler uses a 2000mah flat LIPO cell. Using this battery is only possible due the custom cable we include with each case.

Nibbler has a construction designed to be tough, portable things get dropped after all. The key to this is the “Niblet” on the end of the body which attaches with two included M3 Hex bolts. These bolts screw into captive stainless steel square nuts inside the body and secure the front face and rear battery cover and option clip (Allen key included!). Nibbler will not come apart unless these two hex bolts are removed, accidental disassembly is pretty impossible!

To summarise the features:

• Supports the Heltec V3, Heltec V4 or Heltec T114 (not included)
• Supports Heltec GPS module
• Body measuring just 77x49x26mm
• Support for a EEMB LP103454 2000mah flat LIPO with PCM chip (not included, see links below)
• Included custom made battery cable with switch allowing use of batteries with JST PH2.0 connector
• Strong Lanyard loop slot with optional Lanyard available
• Two optional Belt Clips

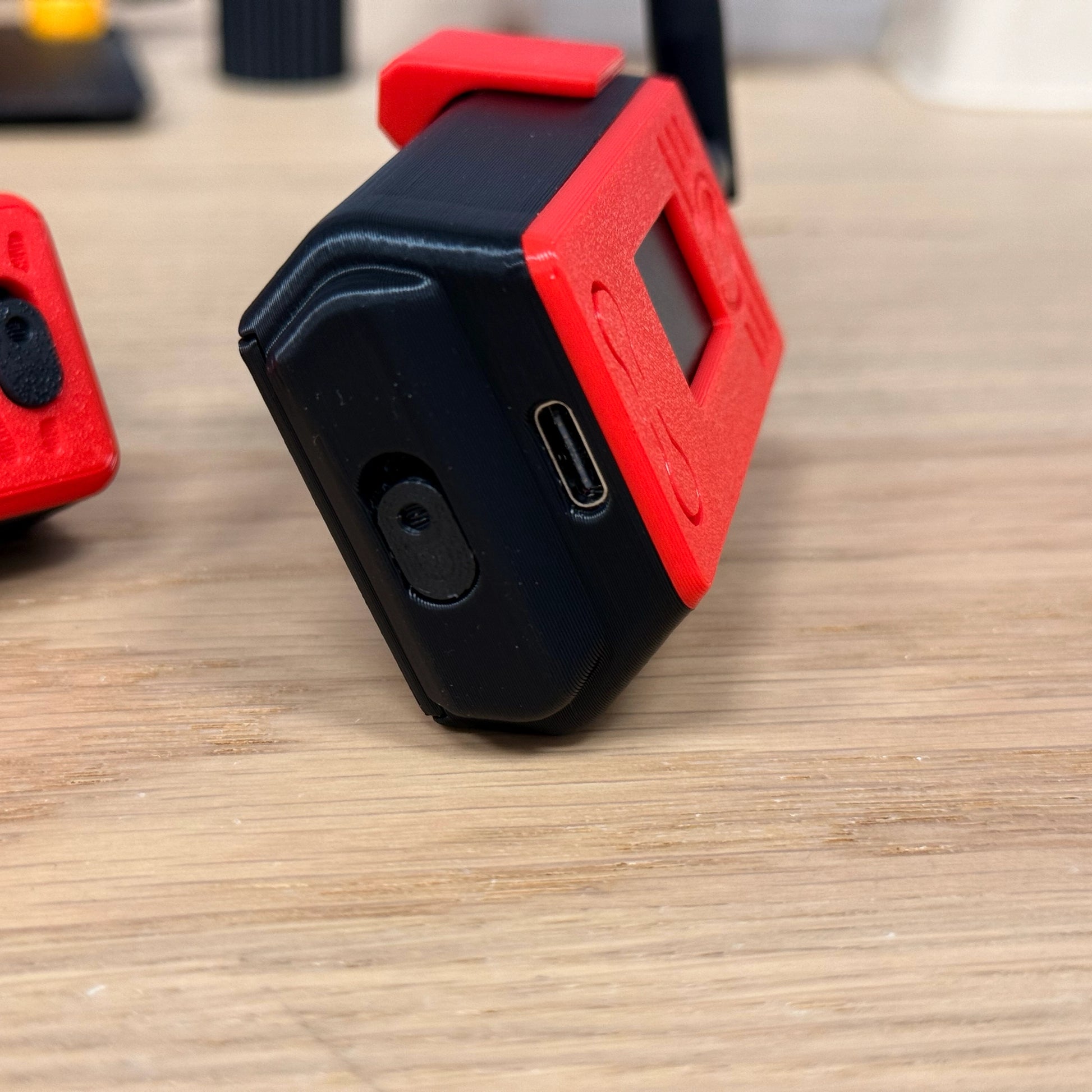

• Access to USB-C connector for charging
• High quality tough PLA+ bioplastic
• Stainless steel Hex bolts and nuts included optional Allen key!

Adapting Nibbler to support a power switch was a miracle and I'm sure you'll love it!

BATTERY LINKS:

UK :  https://www.amazon.co.uk/dp/B08214DJLJ

US : https://www.amazon.com/dp/B08214DJLJ
